Recommended application

Upgrade for Honda Quick Shifter System

• 425Evo 150, Spec 150: Honda Fireblade CBR 1000 RR-R da 2020 (SC82) with Std. or HRC kit ECU

• 425Evo 160, Spec 160: Honda Fireblade CBR 1000 RR 2017-2019 (SC77) with Std. or HRC kit ECU

• 425Evo 160, Spec 160: Honda CB1000R da 2017

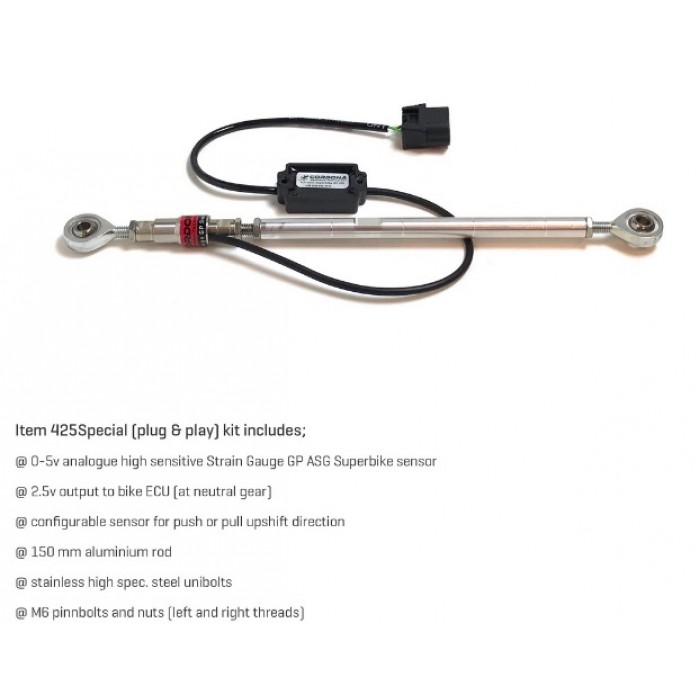

This kit included:

425Evo-150

• GP ASG 425Evo Quickshifter-Blipper

• 150mm aluminium rod

• M6 nut and pin screw kit

425Evo-160

• GP ASG 425Evo Quickshifter-Blipper

• 160mm aluminium rod

• M6 nut and pin screw kit

425Evo-Spec-150

• GP ASG 425Evo Quickshifter-Blipper

• Complete linkage with 150mm aluminium rod, 2x TESCUBAL rod ends with right resp. left threads, M6 nut and pin screws, 4x cable ties, 3M Velcro.

425Evo-Spec-160

• GP ASG 425Evo Quickshifter-Blipper

• Complete linkage with 160mm aluminium rod, 2x TESCUBAL rod ends with right resp. left threads, M6 nut and pin screws, 4x cable ties, 3M Velcro.

Main features:

- Strain Gauge sensor technology

- ‘Plug and play’ installation

- Configurable for push or pull direction for upshift.

- Self-calibration, the strain gauge sensor can be replaced if broken.

- Self-compensated for temperature and vibration impact.

- M6 ’magical’ threads i.e., left and right threads in both sensor ends.

- High precision CNC machined stainless steel sensor housing.

- Total weight 51g including sensor, electronic module & sensor cable.

- Sensor dimension (LxD) 45x14mm.

- Electronic module (LxWxH) 43x25x11mm.

- IP68, electronic and sensor completely sealed.

Special notes:

• Compatible with Std or HRC kit ECU.
